READ Free Dumps For Microsoft- 70-410
| Question ID 9939 | You install Windows Server 2012 R2 on a standalone server named Server1. You configure Server1 as a VPN server.
You need to ensure that client computers can establish PPTP connections to Server1.
Which two firewall rules should you create? (Each correct answer presents part of the solution.
Choose two.)
|
| Option A | An inbound rule for protocol 47
|
| Option B | An outbound rule for protocol 47
|
| Option C | An inbound rule for TCP port 1723
|
| Option D | An inbound rule for TCP port 1701
|
| Option E | An outbound rule for TCP port 1723
|
| Option F | An outbound rule for TCP port 1701
|
| Correct Answer | AC |
Explanation Explanation/Reference: Explanation: The following is a list of firewall ports which need to be opened for the various VPN tunnel protocols: For PPTP: IP Protocol=TCP, TCP Port number=1723 <- Used by PPTP control path IP Protocol=GRE (value 47) <- Used by PPTP data path For L2TP: IP Protocol Type=UDP, UDP Port Number=500 <- Used by IKEv1 (IPSec control path) IP Protocol Type=UDP, UDP Port Number=4500 <- Used by IKEv1 (IPSec control path) IP Protocol Type=ESP (value 50) <- Used by IPSec data path For SSTP: IP Protocol=TCP, TCP Port number=443 <- Used by SSTP control and data path For IKEv2: IP Protocol Type=UDP, UDP Port Number=500 <- Used by IKEv2 (IPSec control path) IP Protocol Type=UDP, UDP Port Number=4500 <- Used by IKEv2 (IPSec control path) IP Protocol Type=ESP (value 50) <- Used by IPSec data path
| Question ID 9940 | Your network contains two subnets. The subnets are configured as shown in the following table.
You have a server named Server1 that runs Windows Server 2012 R2. Server1 is connected to LAN1.

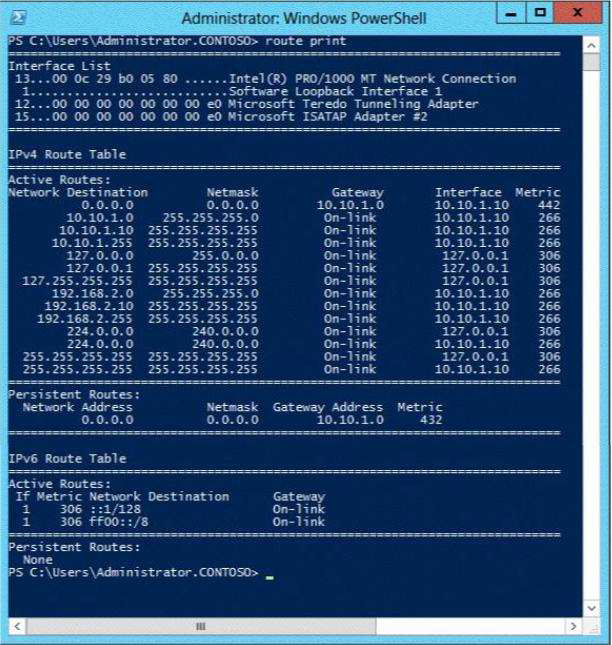

You run the route print command as shown in the exhibit. (Click the Exhibit button.)
You need to ensure that Server1 can communicate with the client computers on LAN2.
http://www.gratisexam.com
What should you do?
Exhibit:
|
| Option A | Change the default gateway address.
|
| Option B | Set the state of the Microsoft ISATAP Adapter #2 interface to disable.
|
| Option C | Change the metric of the 10.10.1.0 route.
|
| Option D | Set the state of the Teredo interface to disable.
|
| Correct Answer | A |
Explanation Explanation/Reference: Explanation: The exhibit shows the default gateway address to be that of LAN1. This should be changed to the LAN2 gateway address to allow client computers access on LAN2. In general, the first and last addresses in a subnet are used as the network identifier and broadcast address, respectively. All other addresses in the subnet can be assigned to hosts on that subnet. For example, IP addresses of networks with subnet masks of at least 24 bits ending in .0 or .255 can never be assigned to hosts. Such "last" addresses of a subnet are considered "broadcast" addresses and all hosts on the corresponding subnet will respond to it. Theoretically, there could be situations where you can assign an address ending in .0: for example, if you have a subnet like 192.168.0.0/255.255.0.0, you are allowed to assign a host the address 192.168.1.0. It could create confusion though, so it's not a very common practice. Example10.6.43.0 with subnet 255.255.252.0 (22 bit subnet mask) means subnet ID 10.6.40.0, a host address range from 10.6.40.1 to 10.6.43.254 and a broadcast address10.6.43.255. So in theory, your example 10.6.43.0 would be allowed as a valid host address. The default gateway address should not end in .0 with the /24 address. References: Training Guide: Installing and Configuring Windows Server 2012 R2, Chapter 4: Deploying domain controllers, Lesson 4: Configuring IPv6/IPv4 Interoperability, p. 254-256
