READ Free Dumps For Microsoft- 70-410

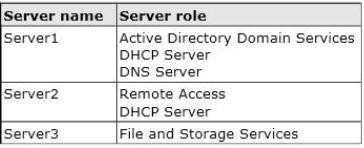

| Question ID 10478 | Your network contains three servers that run Windows Server 2012 R2. The servers are configured as shown in
the following table.
Server3 is configured to obtain an IP address automatically.
You need to prevent Server3 from receiving an IP address from Server1.
What should you create on Server1?
|
| Option A | A reservation
|
| Option B | A filter
|
| Option C | A scope option
|
| Option D | An exclusion
|
| Correct Answer | B |
Explanation Explanation/Reference: A. For clients that require a constant IP address B. Filter to exclude MAC address of Server3 C. Range of allowed IP's to be assigned D. Exclude range of IP's MAC address based filtering ensure that only a known set of devices in the system are able to obtain an IPAddress from the DHCP Reservation and Exclusion, two incredibly different concepts. An exclusion is an address or range of addresses taken from a DHCP scope that the DHCP server is not allowed to hand out. For example, if you have set a DHCP server to exclude the address range 192.168.0.1-192.168.0.10 then the only way a computer on your network would get an address of 192.168.0.4 would be if you assigned it statically on that machine. This is because DHCP knows NOT to give this range of IP addresses out. A reservation is a specific IP addresses that is tied to a certain device through its MAC address. For example, if we have a workstation on the network that requires a certain IP address, but we don't want to go through to trouble of assigning it statically, then we can create a reservation for it. So if the MAC address of the NIC on the computer is AA-BB-00FF-CC-AA and we want it to maintain the IP address of 192.168.0.100 then we would create a DHCP reservation under that particular scope saying that the IP address 192.168.0.100 is reserved only for the MAC address AA-BB-00-FF-CC-AA. Reference: http://technet.microsoft.com/en-us/magazine/ff521761.aspx
| Question ID 10479 | Your network contains a server named Server1 that runs Windows Server 2012 R2. Server1 is a member of a workgroup.
You need to configure a local Group Policy on Server1 that will apply only to non- administrators.
Which tool should you use?
|
| Option A | Group Policy Object Editor
|
| Option B | Group Policy Management
|
| Option C | Group Policy Management Editor
|
| Option D | Server Manager
|
| Correct Answer | A |
Explanation Explanation/Reference: Once you create a GPO, you can open it in the Group Policy Management Editor and configure the GPO's policies, specifically those settings that target the nonadministrators. In this scenario however, you still need to configure the Group Policy thus you would need the GPO Editor. References: Training Guide: Installing and Configuring Windows Server 2012 R2, Chapter 10: Implementing Group Policy, Lesson 1: Planning, implementing and managing group policy, p. 475
