READ Free Dumps For Microsoft- 70-410
| Question ID 9364 | Your network contains a server named Server1 that runs Windows Server 2012 R2.Server1 has the Hyper-V server role installed.
Server1 hosts four virtual machines named VM1, VM2, VM3, and VM4.

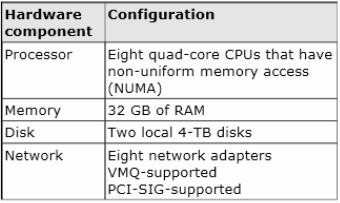

Server1 is configured as shown in the following table.
You install Windows Server 2012 R2 on VM2 by using Windows Deployment Services (WDS).
You need to ensure that the next time VM2 restarts, you can connect to the WDS server by using PXE.
Which virtual machine setting should you configure for VM2?
|
| Option A | NUMA topology
|
| Option B | Resource control
|
| Option C | resource metering
|
| Option D | virtual Machine Chimney
|
| Option E | The VLAN ID
|
| Option F | The startup order
|
| Correct Answer | F |
Explanation Explanation/Reference: Explanation: Configure the BIOS of the computer to enable PXE boot, and set the boot order so that it is booting from the network is first. References: http://technet.microsoft.com/en-us/library/cc766320(v=ws.10).aspx Exam Ref 70-410, Installing and Configuring Windows Server 2012 R2, Chapter 3: Configure Hyper-V, Objective 3.1: Create and Configure virtual machine settings, p.144 Training Guide: Installing and Configuring Windows Server 2012 R2: Chapter 7: Hyper-V Virtualization, Lesson 2: Deploying and configuring virtual machines, p.335
| Question ID 9365 | Your network contains a server named Server1 that runs Windows Server 2012 R2.Server1 has the Hyper-V server role installed.
Server1 hosts four virtual machines named VM1, VM2, VM3, and VM4.
Server1 is configured as shown in the following table.
You plan to schedule a complete backup of Server1 by using Windows Server Backup.
You need to ensure that the state of VM1 is saved before the backup starts.
What should you configure?
|
| Option A | NUMA topology
|
| Option B | Resource control
|
| Option C | resource metering
|
| Option D | virtual Machine Chimney
|
| Option E | The VLAN ID
|
| Option F | Integration Services
|
| Correct Answer | I |
Explanation Explanation/Reference: Explanation: The Integration Services settings on virtual machines include services such as operating system shutdown, time synchronization, data exchange, Heartbeat, and Backup (volume snapshot services). This snapshot will ensure that the state of VM1 is saved prior to backup. References: http://msdn.microsoft.com/en-us/library/dd405549(v=vs.85).aspx Exam Ref 70-410, Installing and Configuring Windows Server 2012 R2, Chapter 3: Configure Hyper-V, Objective 3.1: Create and Configure virtual machine settings, p.144
