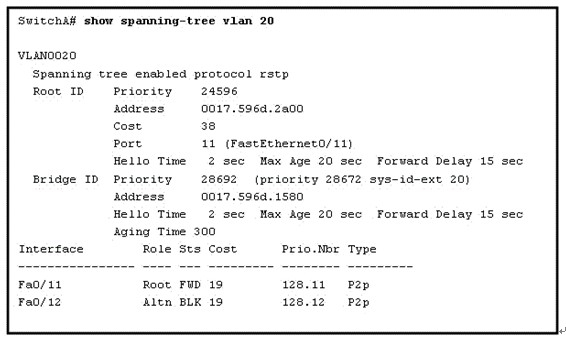

| Question ID 17875 | Refer to the exhibit.
Which statement is true? |
| Option A | The Fa0/11 role confirms that SwitchA is the root bridge for VLAN 20. |
| Option B | VLAN 20 is running the Per VLAN Spanning Tree Protocol. |
| Option C | The MAC address of the root bridge is 0017.596d.1580. |
| Option D | SwitchA is not the root bridge, because not all of the interface roles are designated. |
| Correct Answer | D |

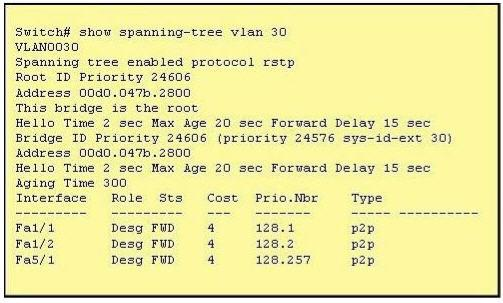

| Question ID 17876 | Refer to the exhibit.
The output that is shown is generated at a switch. Which three statements are true? |
| Option A | All ports will be in a state of discarding, learning, or forwarding. |
| Option B | Thirty VLANs have been configured on this switch. |
| Option C | The bridge priority is lower than the default value for spanning tree. |
| Option D | All interfaces that are shown are on shared media. |
| Option E | All designated ports are in a forwarding state. |
| Option F | This switch must be the root bridge for all VLANs on this switch. |
| Correct Answer | A,C,E |
