READ Free Dumps For Cisco- 200-120

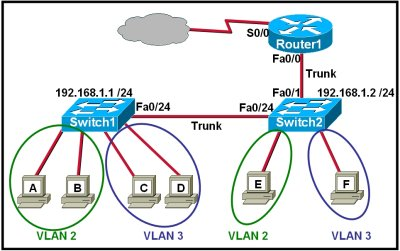

| Question ID 17851 | Refer to the exhibit.
Which two statements are true about interVLAN routing in the topology that is shown in the |
| Option A | Host E and host F use the same IP gateway address. |
| Option B | Router1 and Switch2 should be connected via a crossover cable. |
| Option C | Router1 will not play a role in communications between host A and host D. |
| Option D | The FastEthernet 0/0 interface on Router1 must be configured with subinterfaces. |
| Option E | Router1 needs more LAN interfaces to accommodate the VLANs that are shown in the exhibit. |
| Option F | The FastEthernet 0/0 interface on Router1 and the FastEthernet 0/1 interface on Switch2 trunk ports must be configured using the same encapsulation type.
|
| Correct Answer | D,F |
| Question ID 17852 | What are three benefits of implementing VLANs? (Choose three.) |
| Option A | A higher level of network security can be reached by separating sensitive data traffic from other network traffic. |
| Option B | A more efficient use of bandwidth can be achieved allowing many physical groups to use the same network infrastructure. |
| Option C | A more efficient use of bandwidth can be achieved allowing many logical networks to use the same network infrastructure. |
| Option D | Broadcast storms can be mitigated by increasing the number of broadcast domains, thus reducing their size. |
| Option E | Broadcast storms can be mitigated by decreasing the number of broadcast domains, thus increasing their size. |
| Option F | VLANs make it easier for IT staff to configure new logical groups, because the VLANs all belong to the same broadcast domain. |
| Correct Answer | A,C,D |
